Double Skin Curtain wall in Qatar

A double-skin or double-glazed curtain wall is a high-performance building envelope featuring two glass layers with an1intervening cavity (often 100-600mm) that improves energy efficiency, insulation, and acoustic performance. It enhances sustainability by facilitating natural ventilation in summer, providing superior insulation in winter, and reducing condensation.

Key Aspects of Double-Skin Curtain Walls:

• Design Structure: Consists of an exterior glass layer (often toughened) and an inner layer, creating a ventilated air gap that serves as an insulation buffer.

• Energy Efficiency: These systems allow for optimized energy use, often incorporating automated louvers within the cavity to manage heat gain and solar radiation.

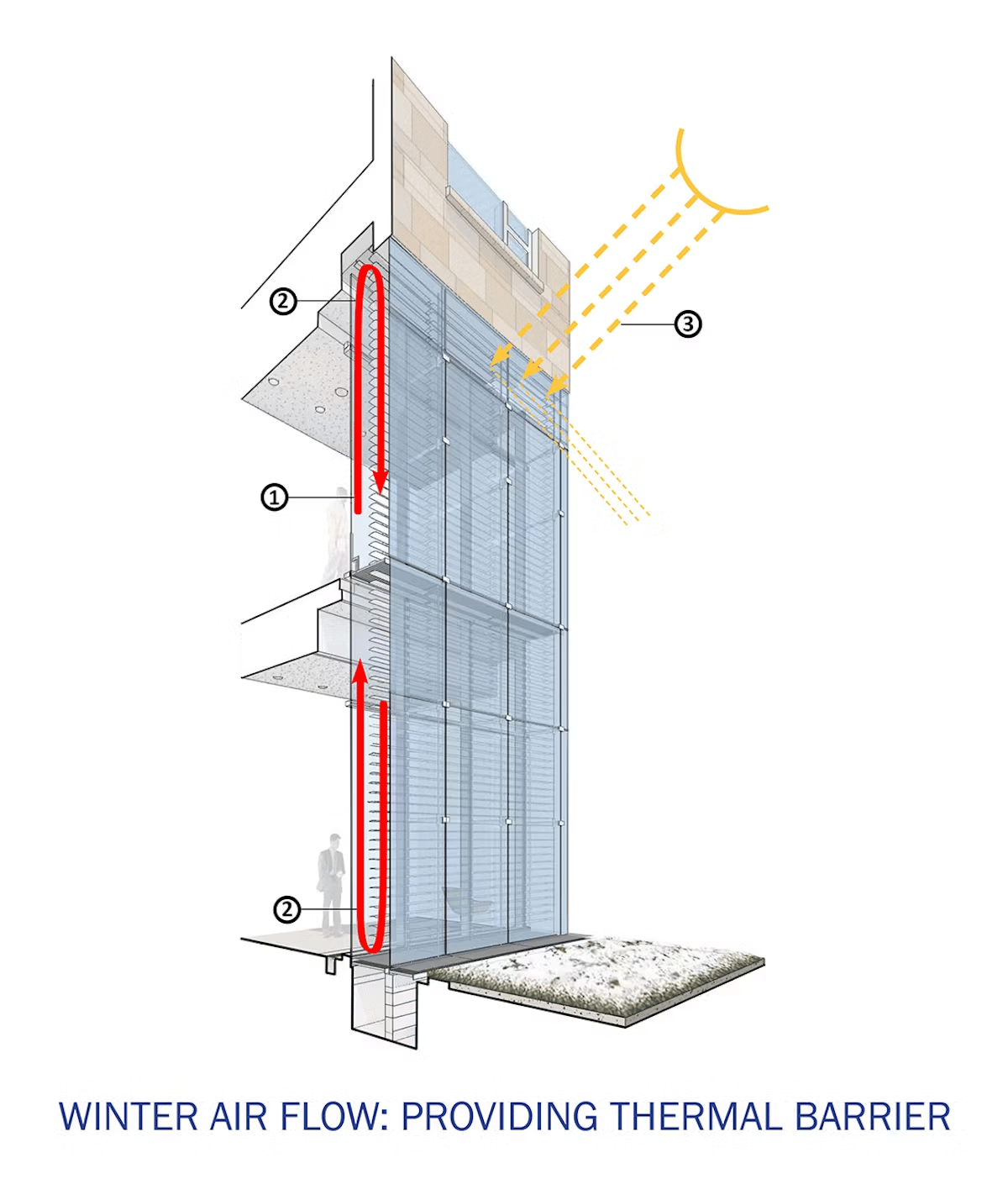

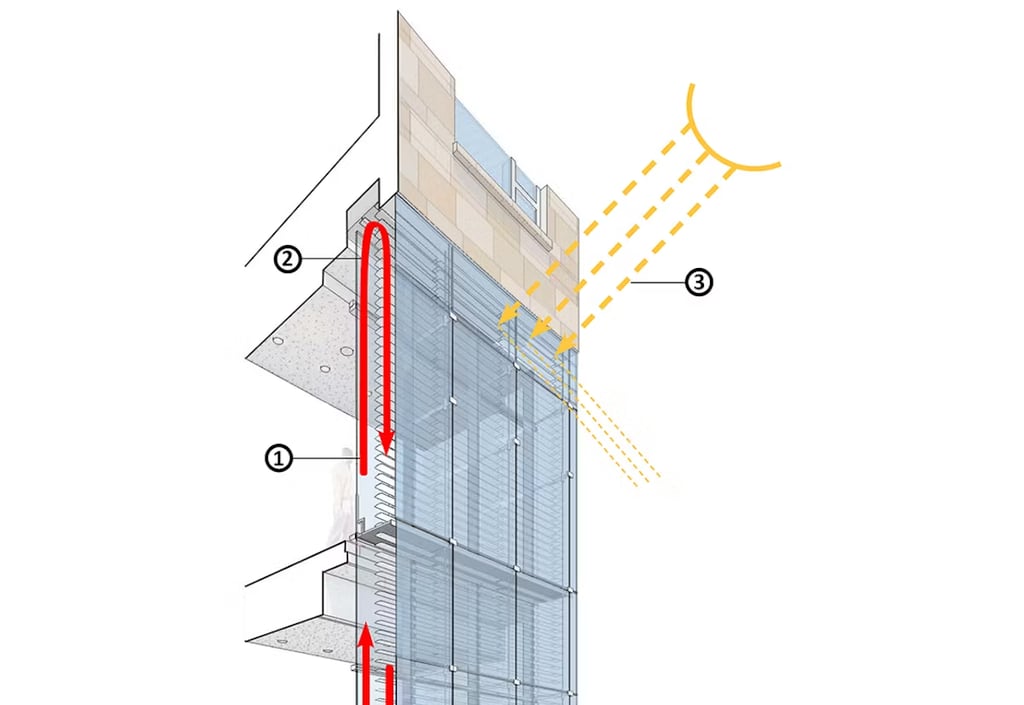

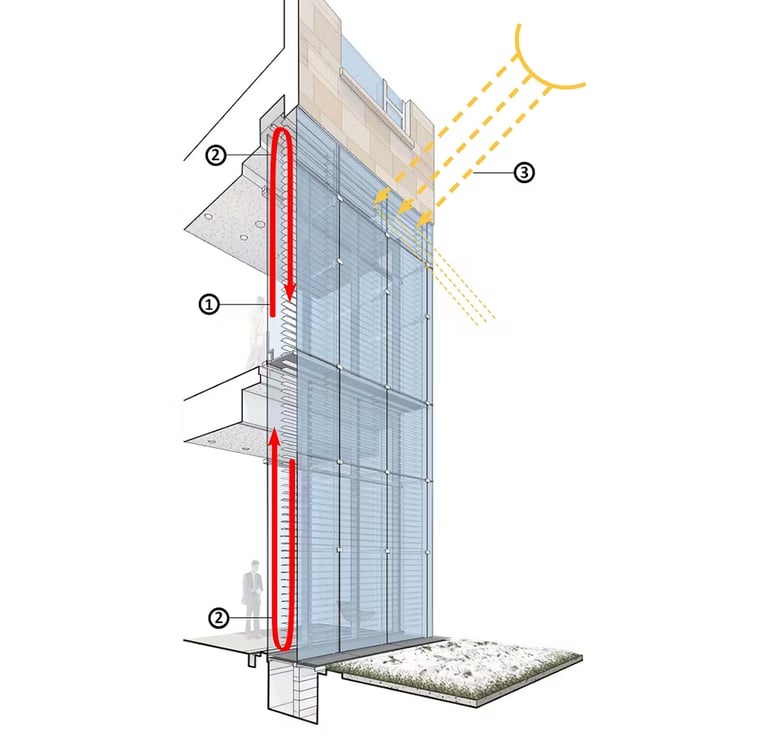

• Environmental Control: The cavity allows for air circulation, which helps in natural cooling and heating, reducing reliance on HVAC systems.

• Durability: The outer skin protects the building from harsh weather conditions, acting as a durable, airtight, and watertight barrier.

• Applications: Commonly used in modern, high-rise, or sustainable office buildings to manage thermal comfort and acoustic insulation.

These systems are distinct from simple, double-glazed window units, acting as a "double skin" for the entire building façade.
